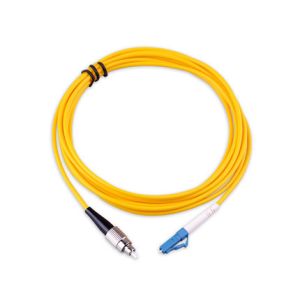

FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord

    Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers

    Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers
    • Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers
    • Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers
    • Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers
    • Buy cheap FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord from wholesalers

    FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord

    Ask Lasest Price
    Brand Name : no
    Model Number : no
    Certification : ISO CE
    Price : 0.36USD-30USD
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord

    Fiber Optic Patch cord



    Feature

    Low insertion loss

    High return loss

    Good exchange ability

    Good durability

    High temperature stability

    100% interferometer measurement

    Telcordia GR-326-CORE


    Application

    Fiber Optic Telecommunications

    LAN (Local Area Network

    FTTH (Fiber To The Home)

    CATV&CCTV

    High speed transmission systems

    Fiber optic sens



    Specification

    ItemValue
    ConnectorSC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc
    Operating wavelength1260-1650nm
    Fiber typeG652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc
    Cable jacketLSZH, PVC, PE, TPU, etc
    Cable typeSimplex, duplex (zipcord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc.
    Polish mannerUPC, APC(8°), PC
    Cable colorYellow, white, blue, orange, gray, green, etc.
    Fiber radius of curvature≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
    Insertion Loss

    ≤ 0.1dB (Master)

    ≤ 0.3dB (Standard)

    Tested by JDS RM 3750

    Return Loss

    UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)--Single mode

    UPC≥ 35dB (typ.38dB)-Multimode

    Tested by JDS RM3750

    Repeat ability±0.1dB
    Operating temperature-40 ° C to 85 ° C

    Geometry Requirement

    (For Single mode)

    Ferrule End face Radius:

    7mm ≤ R ≤ 12mm (APC)

    10mm ≤ R ≤ 25mm (Standard)

    Apex Offset ≤ 30 μm (Master)

    Apex Offset ≤ 50 μm (Standard)

    Undercut -50nm ≤ U ≤ 50nm

    Tested by DORC ZX-1
