Optical Distribution Box 72 Fibers 2in 2out For FTTH Drop Cable
18pcs SC Adapter Splitter Box
GJS-2020 Optical Distribution Box (ODB)is high-density 2in 2out fiber box
solution. Designing with a compact size of 340x220x100mm, the
cabinet accommodates 1x2,1x4,1x8 and 1x16 splitters. The 4 ports
are sized for main cable from 9 to 16mm in diameter, along with
16pcs 3mm cables.
Features
Box is made of high impact engineering plastic PC material, longer
life
Small size, large capacity, fusion can up to 144fibers
Each tray is made of brand new ABS material, high quality and
performance
Full list of accessories, more convenient and fast for operation
Snap with brackets unique design, humanity design
Suitable for outdoor harsh environments like aermial mount, pole
mount a nd wall mount
Can use as a splitter box for FTTH drop cable or only splice
closure for fusion splice.
Uncut cable pass through 2in 2out, drop cable outputs have rubber
blocks with holes for branching
IP65 protetion class
Accessory Kits:
| Accessory | Quantity | Accessory | Quantity |
| Cleaning tissues | 1bag | Number labels | 2pcs |
| Hose clamp | 8pcs | Drop cable sleas | 2sets |
| Main Cable Seals | 3pcs | Aerial mount kits(bracket)with M5x12 stainless bolts) | 1set |
| Nylon Tie-wrap | 8pcs | M6x10 Stainless Bolts | 2pcs |
| Shrinkable sleeves | on actual fiber cores | Fiber Melting Protection Tube | 3pcs |
Specification
| Model | GJS-2020 |
| Dimension | 340x220x100mm |
| Max fusion capacity | 144cores, max. 6pcs 24fiber tray |
| Cable ports | 2in 2out |
| Drop cable ports | Each 1round ports at both ends which can hold 16pcs 2x3mm drop
cable |
| Max. Cable dimaeter | 9-16mm |
| Max. Splitter | 1x2,1x4,1x8,1x18, ... 2x16 plc splitter steel tube type |
| Max. Adaper | 18pcs SC simplex adapter |
| Material | PC |

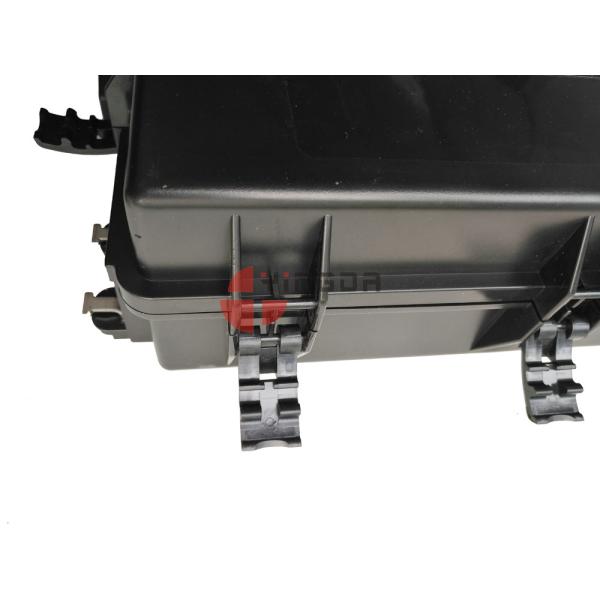

Box overview Adaper holer plate (white or black)
24fiber splice tray, 2in 2out for uncut feeder cable,
ABS brand new material round port for FTTH drop cable 2x3mm
snap bracket design at front and sides, cable ports at both sides,
PC material,
better profromance and protection high impact and high strength
last for
more than 20years
