5G 0.2dB Ceramic C-Groove Fiber Optic Terminated Field Installable
SC APC Connector 2*3mm Drop Cable
Sell point:
1.SC / APC, cover type, total length 53mm
2. Apply to 2mm* 3mm fiber drop cable
3.Ceramic C-groove structure not plastic or metal, good sealing
performance, flame retardant
4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB
5. Return loss: ≥50dB
6. No need epoxy or polished, field-installable, factory embedded
fiber
Description

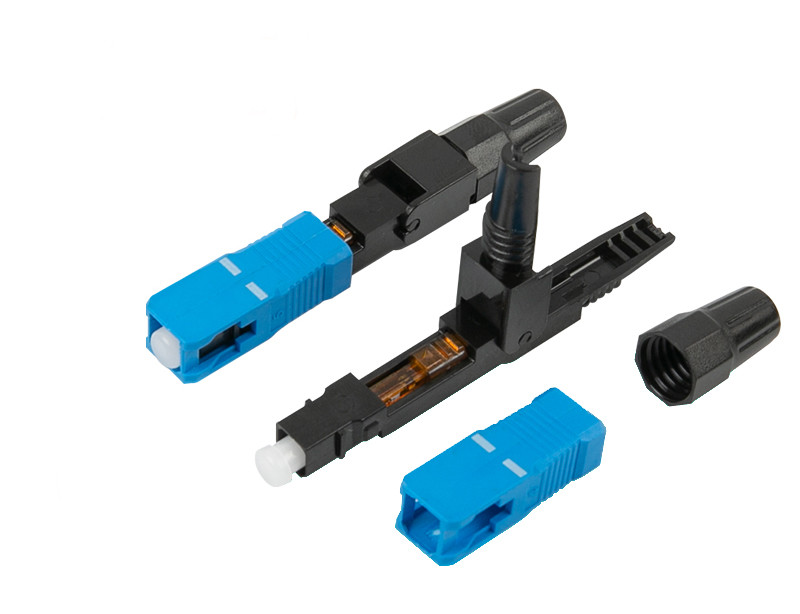

SC/APC Fiber Optic Fast Connector is designed for FTTH is a new
generation of fiber connector
used in assembly. It can provide Open flow and Pre-cast type of
products, whose optical and
mechanical specification meets the standard optical fiber
connector.
It is designed for high quality and high efficiency for
installation the structure of crimping position
is a unique design, and need not gluing, polishing neither any
consumables. Adopting fiber
pre-installed structure, and convenient for field installation.
Specification
Type | Parameters |
Insertion loss | ≤ 0.3dB (1310nm & 1550nm) |
Return loss | ≤ -45dB |
Bare fiber strength | >5N |
Clad strength | >10N |
Tension | >50N |
Mechanical durability (500times) | IL ≤ 0.2dB & RL ≤ 5dB |
Operating Temperature | 5 ºC to +70 ºC |
Application
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber / Home (FTTH) applications
- Repair/replacement requirements
- Equipment test leads
Features
- Precise mechanical dimensions
- Low insertion loss, high return loss
- Comply standard of IEC61754-4
- Repeatable times is no less than 50 times;
- Long life span design, more than 30 years.
- Provide Open flow and Pre-cast type of products
- Adopting fiber pre-installed structure
- Convenient for field installation
- No epoxy or polishing required, easy assembly in the field
- Fiber termination can be reset, save time and energy ,reduce scrap
- No need special too, readily available
Pack Information:
1pc/plastic bag, 100pcs/inner box, 10pcs inner box/carton box
Product details:
English User Manual: 1pcs/100pcs inner box
How to use the fast connectors?
Process the fiber
1. Insert the drop cable into the stripper till 50-60mm out, and
strip the cable strength layer
2. Press the stripped cable into the clamp, there are 4points to
lock the fiber
3. Strip the cable coating layer by the insert the longitudinal
fiber stripper to strip the coating of the fiber. Or use Miller
stripper align of the fiber clamp.
4. Check the fiber by bending about 60°into direction if ok
5. Clean the fiber with alcohol cloth by 0°wipe and 90°again
6. Put the clamp into the length fixer till arrow up, and press to
the end
7. Lay flat on the fiber cleaver slot, align to the end, and then
cut the fiber
8. Finally the fiber length will be :19.4mm and 29.4±0.1mm,see
Assembly
Check the black locker
Insert the fiber along with the V entrance till fiber bend, but not
higher than 1mm than V entrance
Keep housing, coating, and jig on the same level, take off the
switch.
Dis-assembly
Assemble the auxiliary jig,fit on switch to the right end
Unlock the fiber
Use the exclusive convex to open the cover, unlock the shell
Raise 15°to pull out the fiber
