Durable Field Installable Connector SC UPC APC SM SX For FTTH LAN ODF

Description

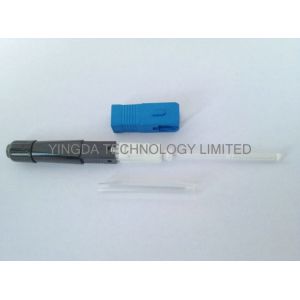

SC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point inside

the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need

additional protection after splice, such as splice tray,splice closure,distribution box. In contract

to the design of mechanical splice connector, it save V-groove mechanical connector aintenance

and operation cost and durable, which overturns the concept that high cost of splice machine

and do not apply to FTTH construction.

Application

• FTTH optic fiber terminal connection
• LAN network
• Reformation of ODF and the new patch cord of ODF on site.

Specification

* Please use the customized FTTH melting machine

* Recommended consumable:

Keep a supply of the following items

• Denatured alcohol
• Lint-free tissues
• Cotton swab

Order information

FS-XXX-XX-XXX

1- 2 -34

Fusion Splice-on Connector Instruction Steps

1. Preparation

2. Put heat-shrink tube housing and nut through into the fiber cable

3. Use flat-fiber stripper to strip the covering about 45mm

4. Use the fiber stripper to strip the fiber coating layer ad clean the fiber ,then place the optial fiber to the holder.

5. Cut the fiber by fiber cleaver

6. Place the assembled holder into the fusion splice machine

7. Strip the 0.9mm fiber coating layer

8. Clean the optical fiber and put it into the holder of fusion splicer machine

9. Cut the fiber by fiber cleaver

10. Put the holder into the fusion splicer machine

11. After the two holder tools ready, close the fusion machine,start fusion

12. After fusing,open the machine and take out the whole spliced-connector carefully

13. Insert the heat-shrink tube to the tail of the spliced-connector carefully, then put the whole spliced connector into the fusion machine and start heating up

14. Remove the connector from fusion machine after about 90s heating, and then cooling down for about 5s

to 10s.

15. Complete assembly
